- Electric motorcycle profile, introduction, photo, components, standard, advantage, disadvantage, notes and tips are presented on this page.
-
Electric Motorcycle refers to motorcycle powered by electricity of rechargeable battery rather than an engine with petrol.
Compared with traditional petrol powered motorcycle, electric motorcycle is more economical; especially when it is at a standstill. You only need to pay 1 to 5 USD to charge an electric Motorcycle.
With a higher power and speed, electric motorcycle is becoming an ideal mode of transport for city commutes.
-

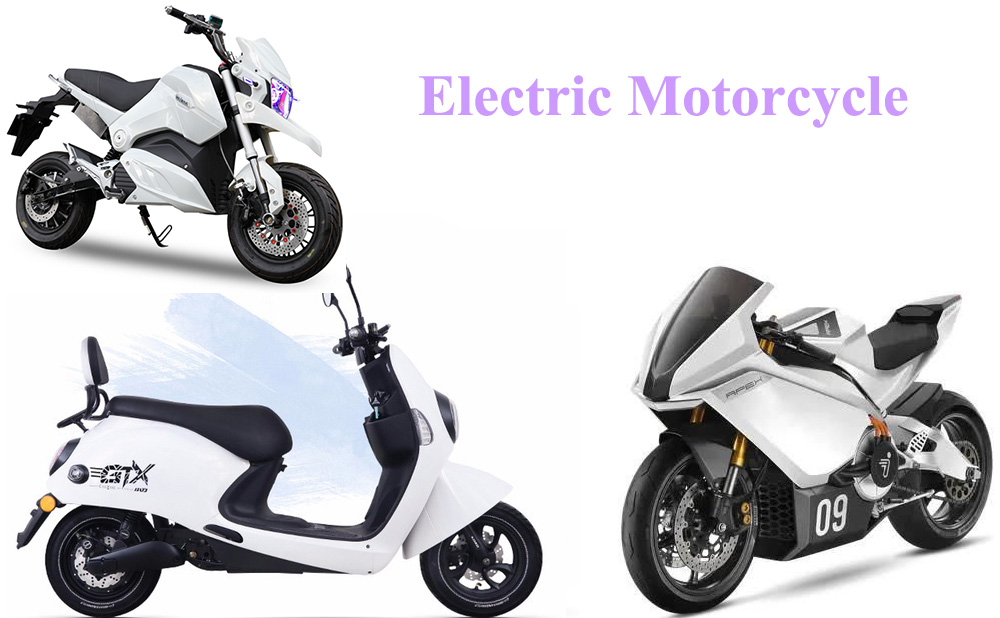

- Images of normal electric motorcycles are included in the photo.
-
Electric Motorcycle is mainly composed of frame, electric drive system.
The frame of a electric motorcycle is almost same with a traditional motorcycle. Then the electric drive become the main element when choose a motorcycle. Being a device converting electrical energy into mechanical energy, Electric Motorcycle obtain the power through the generation of a magnetic field by means of a current flowing into one or more coils.
How far it can go is the main concern to judge a motorcycle.
For the time being, the battery can take you to a distance from 50 miles to 300 miles. And with the development of battery technologies, an electric motorcycle can take you to a further place.
Even though the motorbike is electric, you still need to get a license and buy insurance for it.
- Battery ( Power supply )
- The battery provides electric energy for the driving motor of electric motorcycle. Then the electric energy will be converted into mechanical energy to drive the wheels forward. For the time bing, lead-acid batteries is main product used on motorcycle, although it will must be replaced by new battery.
- Drive motor
- Drive motor is the device to convert the electrical energy into mechanical energy, and drive the wheels and working devices directly through the transmission device. Nowadays, DC series motors are widely used in electric vehicles. However, with the development of motor technology, it will be replaced by DC brushless motors (BCDM) and switched reluctance motors in the future.
- Motor speed control device
- By controlling the voltage or current of the motor, Motor speed control device is used to control the speed of the motorcycle. The device developed from stepped speed regulation to the thyristor chopping speed regulation, which is a step-less speed regulation by uniformly changing the terminal voltage of the motor and controlling the current of the motor. As the development of electronic power technology, it will be gradually replaced by other power transistors (including GTO, MOSFET, BTR and IGBT, etc.) chopper speed regulation devices; and the DC inverter technology will be applied in the future.
- Driving device
- Same with traditional motorcycle, the driving device turn the driving torque of the motor into a force on the ground through the wheel.
- Braking device
- Same with other cycle, the baking device of electric motorcycle is composed of a brake and its operating device.
-
ISO/TR 13062:2015(en) Electric mopeds and motorcycles - Terminology and classification
ISO 13064-2:2012, 3.6. : maximum speed: highest average speed which the vehicle can maintain twice over a distance of 200 m
ISO 13064‑1:2012, 3.1. : reference energy consumption: quantity of electric energy from the mains needed to charge the traction battery (2.3.1.3).
ISO 13064‑1:2012, 3.2. : reference range: distance covered by an electrically propelled vehicle (2.1.1.3) over a designated test sequence on a fully charged traction battery (2.3.1.3), to the end of the test sequence as defined by the end of test sequence criteria
ISO 13064‑2:2012, 3.7. : acceleration ability: shortest time required to accelerate the vehicle from standstill over a given distance.
ISO 13064‑2:2012, 3.8. : hill starting ability: maximum slope on which the vehicle can start moving over a minimum distance of 10 m
ISO 13063:2012, 3.26. : maximum working voltage: highest value of a.c. voltage (rms) or of d.c. voltage which may occur in an electric system under any normal operating conditions according to manufacturers’ specifications, disregarding transients.
ISO 13063:2012, 3.5. : basic protection : protection against direct contact (2.1.3.3.12) with live parts (2.1.2.2.1) under fault-free conditions
IEC 60050, 151-13-39. : electric machine : energy transducer that can transform electric energy into mechanical energy or vice versa.
IEC 60050, 151-13-36. : electric energy converter : device for changing one or more characteristics associated with electric energy.
ISO 6469‑1:2009, 3.16. : Rechargeable energy storage system : system that stores energy for delivery of electric power and which is rechargeable.
- Environment friendly
- With a 0 emissions environmental label, Electric motorcycles do not use gasoline as source of power.
- Lower maintenance cost
- Electric bikes don’t have air filters, oil, spark plugs, timing belts and some don’t even have a clutch or gearbox. With fewer moving parts, the electric motor is simpler than a gasoline motor. And you do not need to change oil in limited driving distance, which same you time and protect your wallet.
- Rapid acceleration
- An electric motor has instant 100% torque which means rapid acceleration, which means electric motorcycles are fast.
- Less vibration.
- The power of electric motorcycle is very linear, there is no “surge” feeling, which gives no or very little vibration.
- Less noise
- People of the community think the roar of an exhaust pipe of gasoline motorcycles antisocial and annoying. Most electric motorcycles are quiet.
- Lightweight.
- Electric motorcycle has less parts than a fuel powered one, which makes it more lightweight and agile.
- Easy to operate
- Electric motorcycle is very easy for younger or older drivers to use.
- Privileges in city using
- Most cities offers privileges to electric vehicles, such as free parking, lower rate, authorization to be used in special district, etc.
- None or reduced taxes
- Electric motorcycles are encouraged to be used in some cities by exempting from tax.
- Lower commuting costs
- Recharging an electric motorcycle can be up to four times cheaper than filling the fuel tank of a 125 cc traditional gasoline motorcycle. Driving the same distance, the electric motorcycles spend lower cost than gasoline motorcycle.
- Expensive
- Electric motorcycle is more expensive than gasoline motorcycle. And it is costly to replace a battery.
Short driving distance : It is not a good idea to plan a long driving with electric motorcycles. Most electric motorcycles driving distance is only available from 50 to 200km. - Long recharge time
- Another reason of Electric motorcycle not good for long driving is the recharging. You can not find a place to recharge it in a remote area. And it needs at least half an hour to take partly recharging if you can find a recharging place.
You also have to take care not to over-charge the battery to avoid the damage to it. - No Sound
- The sound of an electric motorcycle is very small. It is hard for passengers to find it, which is dangerous.
- Limited Battery life
- The life of Maintenance-free electric batteries is limited. The more you use it, the sooner you will have to charge and replace it .
-
The history of electric motorcycles is almost as long as the history of gasoline motorcycles.
In 1895, Ogden Bolton Jr. applied the world’s first electric motorcycle patent in Ohio, USA.
In 1896, The first electric motorcycle was showed at the Stanley Bike Exhibition. The electric motor was placed between two wheels. The speed of the electric motorcycle can be controlled by a resistor connected to the handlebar.
In 1936, the Limelette brothers founded the "Socovel" company specializing in electric motorcycles in Germany. However, due to the backward technology on battery, electric motorcycles was not popularized at that time.
During World War II, Merle Williams invented an electric motorcycle that can tow a small trailer in the United States.
In 1967, Austrian electrochemist Karl Kordesch invented an electric motorcycle powered by a hybrid of fuel cells and nickel-cadmium batteries, which was later replaced by hydrazine fuel cells. This electric motorcycle consumes one liter of hydrazine fuel and can run 87km, and the top speed can reach 40km/h.
In 1974, Mike Corbin made an electric racing motorcycle called Quick Silver, which set a world record of 266.165km/h in the Bonneville Salt Lake in the United States, and this magical motorcycle used the 24V Electric motor on the American DouglasA-4B fighter jets.
In 1996, the first mass-produced electric motorcycle appeared, the Scoot'Elec of Peugeot in France. This motorcycle uses nickel-cadmium batteries and has an effective mileage of only 40km. Lithium batteries was created in this period, which boost the development of electric motorcycle.
In 2011, American inventor Chip Yates rode his own prototype SWIGZ electric motorcycle and created a speed of 316.899km/h.
In 2013, an electric motorcycle named Lightning defeated the Ducati Multistrada 1200 S in the Pikes Peak Mountain Climbing Competition and won the championship with a 20-second lead.
At present, China is the largest production and use area of electric motorcycles in the world.
- Power and Speed
- The normal electric motorcycle offers a vehicle with a speed more than 50 km per hour. If the electric motorcycle speed is between 20 to 50km, then it is called Electric moped.
- Number of Wheels
- Traditional electric motor-tricycle is equipped with two wheels, a front wheel and a rear wheel.
- Electric tricycle
- Electric three-wheeled moped is equipped with three wheels, one front wheel and two rear wheels.
- Style
- Chopper, cruiser, touring, sport tourist, naked, cross, Enduro, Street and Scooter.
-
- Make clear what you will use your electric motorcycle for, such as commute, touring, adventure, track riding, etc. And then choose the right type product.
- Buy Insurance for your electric motorcycle when you got it.
- Read and follow the guideline from manufacture.
- Maintenance your electric motorcycle regularly.
- Inspect your electric motorcycle regularly to check the brake, battery, tires, lights and horn before any riding.
- If possible, make the electric motorcycle stop there for ten minutes after each full recharge.
- Recharge the battery in time.
- A regular deep discharge of the battery is also conducive to "activating" the battery of your electric motorcycle.
- The best ambient temperature for electric motorcycle charging is 25°C.
- The battery should be recharged immediately when your electric motorcycle is difficult to start, the horn do not work or the lights is dim.
-
- License is needed in most cities when you drive an Electric Motorcycle.
- Helmet is must when you ride your electric motorcycle.
- Do not change the charger.
- In case of rain and stagnant water, do not let the water flood the center of the wheel hub.
- When the electric motorcycle is not used for a long time, it should be charged every month. And the battery should not be stored in a state of power loss.
-
- License is needed in most cities when you drive an Electric Motorcycle.
- Helmet is must when you ride your electric motorcycle.
- Do not change the charger.
- In case of rain and stagnant water, do not let the water flood the center of the wheel hub.
- When the electric motorcycle is not used for a long time, it should be charged every month. And the battery should not be stored in a state of power loss.
-
- Make clear what you will use your electric motorcycle for, such as commute, touring, adventure, track riding, etc. And then choose the right type product.
- Buy Insurance for your electric motorcycle when you got it.
- Read and follow the guideline from manufacture.
- Maintenance your electric motorcycle regularly.
- Inspect your electric motorcycle regularly to check the brake, battery, tires, lights and horn before any riding.
- If possible, make the electric motorcycle stop there for ten minutes after each full recharge.
- Recharge the battery in time.
- A regular deep discharge of the battery is also conducive to "activating" the battery of your electric motorcycle.
- The best ambient temperature for electric motorcycle charging is 25°C.
- The battery should be recharged immediately when your electric motorcycle is difficult to start, the horn do not work or the lights is dim.
